AccuSpark Specials
Dynamators, Fuel pump and Fans

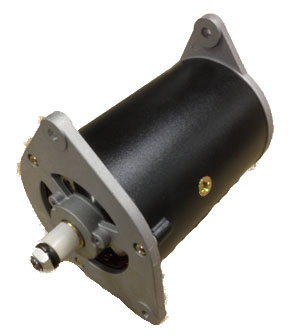

AccuSpark™

Dynamator (alternator in dynamo housing)

C39 / C40 DYNAMTOR (alternator conversion)
Brand New Dynamo Conversion
This is a direct replacement alternator built into a dynamo
Keeps the original appearance whilst giving alternator performance
45 Amp Output 12v Neg Earth
Original pulley will need to be used
Suitable all cars with C39 or C40 Dynamo fitted
Comes complete with wiring insructions (simple instalation)
Adjuster lug thickness: 10mm
Mounting lug thickness: 10mm
Distace between mounting lugs: 144mm
Body Diameter: 105mm
Shaft Diameter: 15mm

180

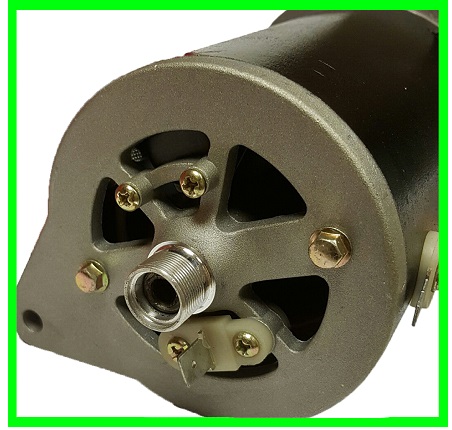

C39 / C40 DYNAMTOR
Same as above, now also with Tacho Drive (aandrijving toerenteller)
(as used on many MG's, Morgan etc.)

190

C39 / C40 DYNAMTOR positive earth
Same as above, (with optional Tacho Drive)
suitable for Positive earth cars
(as used on many early MG's, Morgan etc.)

210

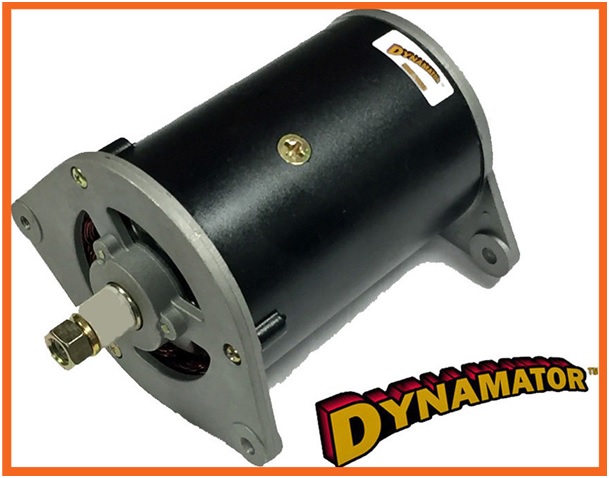

C40L DYNAMTOR (alternator conversion)
Brand New Dynamo Conversion
This is a direct replacement alternator built into a dynamo
Keeps the original appearance whilst giving alternator performance
45 Amp Output 12v Neg Earth
Original pulley will need to be used
Suitable all cars with C40L (long) Dynamo fitted
Comes complete with wiring insructions (simple instalation)
Adjuster lug thickness: 10mm
Mounting lug thickness: 10mm
Distace between mounting lugs: 154mm
Body Diameter: 105mm
Shaft Diameter: 15mm

190

C40L DYNAMTOR positive earth
Same as above
suitable for Positive earth cars
(as used on Ford, Triumph 2000 etc.)

210

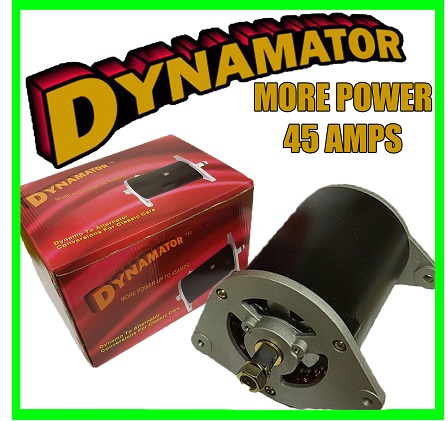

C42 DYNAMTOR (alternator conversion)
Brand New Dynamo Conversion
This is a direct replacement alternator built into a dynamo
Keeps the original appearance whilst giving alternator performance
45 Amp Output 12v Neg Earth
Original pulley will need to be used
Suitable all cars with C42 Dynamo fitted
Comes complete with wiring insructions (simple instalation)
Adjuster lug thickness: 10mm
Mounting lug thickness: 10mm
Distace between mounting lugs: 174mm
Body Diameter: 105mm
Shaft Diameter: 15mm

200

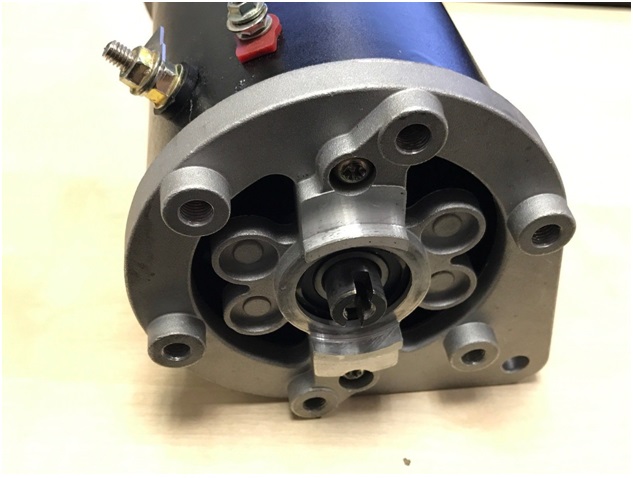

C42 DYNAMTOR
Same as above, now also with connections for power steering
(as used on Jaguar etc.)

210

C42 DYNAMTOR positive earth
Same as above, (without power steering)
suitable for Positive earth cars
(as used on Jaguar, Austin and Ford etc.)

220

C45 DYNAMTOR (alternator conversion)
45 Amp Output 12v Neg Earth
Original pulley will need to be used
Suitable all cars with C45 Dynamo fitted
Comes complete with wiring insructions (simple instalation)
Adjuster lug thickness: 8 mm
Mounting lug thickness: 10 mm
Distace between mounting lugs: 165 mm
Body Diameter: 120mm
Shaft Diameter: 17mm

210

C45 DYNAMTOR positive earth
Same as above, but suitable for Positive earth cars
(as used on Jaguar, Austin Healey and Riley etc.)

230

Austin 7 DYNAMTOR (alternator conversion)
45 Amp Output 12v Neg Earth
Original gears can be used
Special for Austin 7 (1922-1955)
Available in 6V or 12V version, neg. earth
Comes complete with wiring insructions (simple instalation)

290

AccuPump™

Electronic Fuel pump

Electronic Fuel Pump Universal fitting

pumps 6-8 PSI 40 Gallons Hour
(pumps ca. 0,5 bar 180 liter / hour, 3 liter /min.)

Negative earth

45

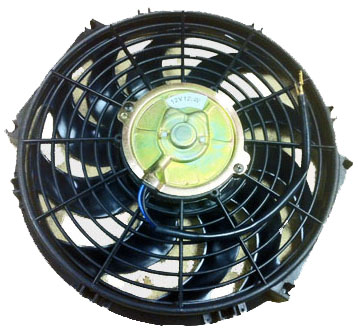

AccuFan™

Aeroline 12V Electronic Cooling Fan, Universal fitting

9" Electric Cooling Fan with Curved Blades
250 x 270 x 60 mm
12v 80W, Rating= 2450 m3/h at 2800rpm
Unique Curved Blades Allow Fan To Push or Pull Air
Slim, Lightweight Design
including FAN FITTING KIT

34

12" Electric Cooling Fan with Curved Blades
300 x 320 x 60 mm
12v 120W, Rating= 3100 m3/h at 2600rpm
Unique Curved Blades Allow Fan To Push or Pull Air
Slim, Lightweight Design
including FAN FITTING KIT

39

12" Electric Cooling Fan with Curved Blades, Heavy Duty
300 x 320 x 75 mm
12v 220W, Rating= 3500 m3/h at 2500rpm (and higher pressure)
Unique Curved Blades Allow Fan To Push or Pull Air
Slim, Lightweight Design
including FAN FITTING KIT

59

14" Electric Cooling Fan with Curved Blades
355 x 375 x 60 mm
12v 120W, Rating= 3500 m3/h at 1900rpm
Unique Curved Blades Allow Fan To Push Air
including FAN FITTING KIT

44

14" Electric Cooling Fan with Curved Blades, Heavy Duty
355 x 375 x 75 mm
12v 220W, Rating= 4000 m3/h at 1900rpm (and higher pressure)
Unique Curved Blades Allow Fan To Push Air
including FAN FITTING KIT

64

16" Electric Cooling Fan with Curved Blades
400 x 420 x 60 mm
12v 120W, Rating= 4000 m3/h at 1700rpm
Unique Curved Blades Allow Fan To Push or Pull Air
Slim, Lightweight Design
including FAN FITTING KIT

49

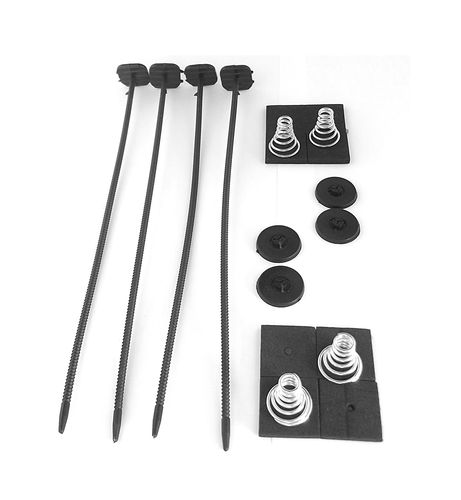

FAN FITTING KIT

High quality fitting kit for universal radiator fans

4

Capillary Thermostat Control For Cooling Fan
Universal Fitment For All Aftermarket Fans
Easy to Fit
Dial in Degrees Cecius so Fan will Work at Desired Temp

25
