Sparkrite range


Ignition Systems

SX4000 Sparkrite™ universal ignition

Sparkrite Points / Electronic Ignition Amplifier

Suitable for:
all 6 - 12v Negative earth points & condenser type distributors.

The new SX4000 can change your classic vehicles ignition set up to an amplified system utilising the points, at the flick of a switch.
There is no need to remove the traditional points or condenser and you will soon notice the benefits of easier starting and greater spark efficiency, giving better combustion throughout the rev range.

The points are only used as a trigger, so no big currents through the points anymore.
Also no deterioration or burning of the points, they will last forever.

The SX4000 is easy to install with just 4 wires to connect
Small Robust Compact design 90mm x 50mm x 30mm

It is strongly advised to replace the non suppressed original copper core leads (if fitted) to ensure the life of the new electronic ignition is secured. We also supply matching leads.
Negative earth only

€ 39

SX5000 Sparkrite™ cam triggered contactless ignition

SPARKRITE™ SX5000 Triggerless electronic ignition for the Lucas 45D & 59D*Distributor.

This unit will completely replace the points and condenser in your Lucas 45D & 59D* distributor.
*Installation on 59D distributor will require 'self cleaning points' pin to be removed.
The unique design does not require a trigger and uses the cam of the distributor itself to trigger the module.
Because it does not need a specific trigger ring, this module is also suitable for universal fitment.
Dimensions (LxBxH) 50 mm (curved), 25 mm, 18 mm.

The SPARKRITE™ SX5000 also has a led check light to confirm the unit is powered up.
Included in the module is a built in adjustable soft cut rev limiter, adjustable from 2000 -12000 RPM

It is strongly advised to replace the non suppressed original copper core leads (if fitted) to ensure the life of the new electronic ignition is secured. We also supply matching leads.

€ 55

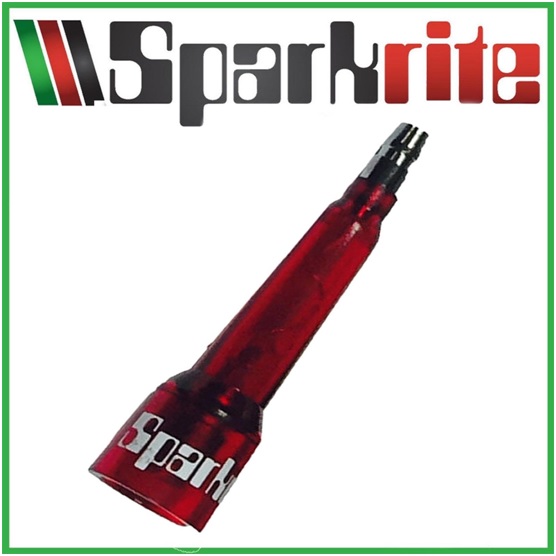

Sparkrite™ Spark tester

Fitment between plug and cable
You see if a spark is present

€ 3,- each

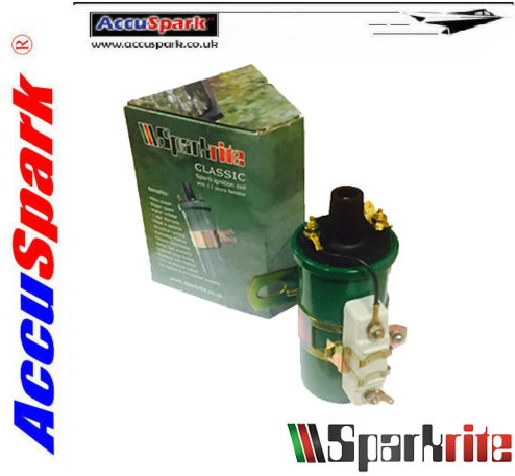

Universal coil

Sparkrite™ Ignition Sports Coil Ballast & Non Ballast


Suitable for any points type ignition system and is perfect for our AccuSpark Ignition Modules

The Sparkrite coil has been developed with impressive specifications and is the perfect upgrade for any points/electronic Ignition, this is one of the best coils on the market to date.

This is a high voltage coil with the resistance between 1.5 Ohms (without resistor) and 3.2 Ohms (with resistor).
Giving you excellent performance. These Sparkrite Coils are built to last.

Coil equivalent to Lucas DLB105 or Lucas DLB110
fits engines with points ignition or electronic ignition with or without a ballast resistor

€ 27
