Bosch Distributors |
||||
Bosch Distributors ususally have a condenser on the outside and normally have a brown cap and rotor, sometimes 6 cylinders have the condensor inside (large version) |
||||
Bosch Distributors are fitted with left and right hand points Early cars up to 1968 use a cast distributor with 2 piece points |
2 piece Right hand |
|||
Late Cars after 1968 use a alloy distributor with 1 piece points |
1 piece Right hand |
|||
Late Cars after 1968 use a alloy distributor with 1 piece points |
1 piece Left hand |
Ford Distributors |
||||
Ford cars are fitted with 3 types of Distributor BOSCH, MOTORCRAFT and LUCAS |
||||
Bosch Distributors, see above |

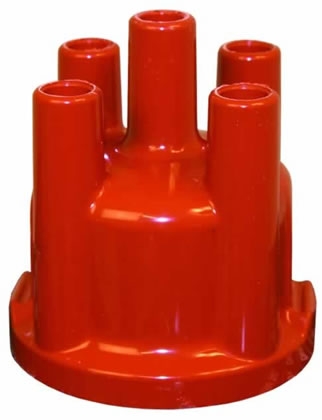

Bosch distributor cap |
|||
Motorcraft and Fomoco distributors have a rotor with a spring steel contact |
||||
Lucas Distributors normally have a black rotor as shown or "RED rotor", see also below |
Lucas Distributors |
||||
Lucas DM2 Early will have DM2 stamped on the body. |
||||
Lucas DM2 Late will have DM2 stamped on the body. |
||||
Lucas 23/25D will have 25D stamped on the body. |
||||
Lucas 43/45D. |
||||
Lucas 48D 59D As 45D but points will Blue |
||||
Lucas DM6 |
||||
Lucas 22 / 25D6 |
||||
Lucas 45D6 |
||||
Lucas 35D8 |
early type |
late type
|
Mini A and A+ Distributors |
||||
Although the same ignition kits can be used Mini A and A+ complete distributors are not interchangeable |
||||
Mini A distributors (up to 1980) the distributor is held in with a pinch clamp with 2 bolts |
||||
Mini A+ the distributor is held in with a y clamp and 1 bolt |
